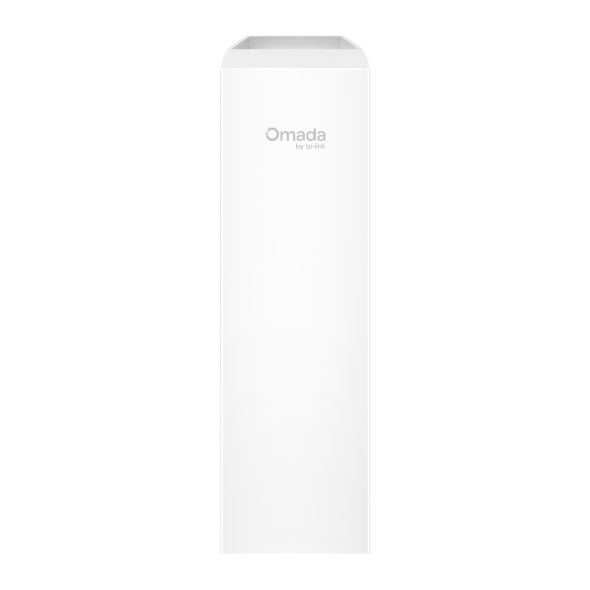

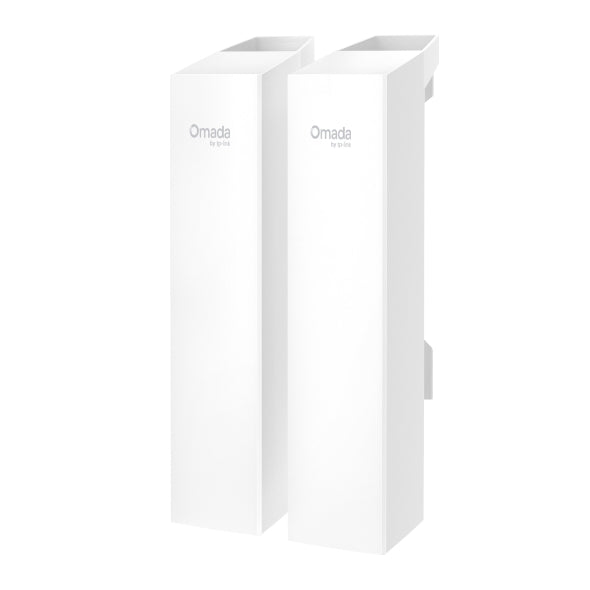

TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

Available: In Stock
$317.00

There are 1 units left in stock.

Only 1 TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge Default Title left in stock.

TP Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
  • Ideal for long-range wireless transmission up to 1 km.*2
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× Gigabit Ethernet ports for more high-speed IP camera connections.*6
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
  • Supports Passive PoE for flexible deployment (adapter included).
    HARDWARE FEATURES

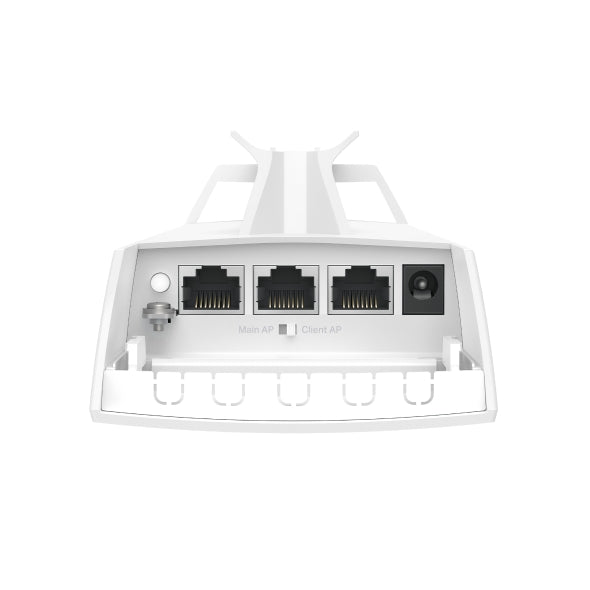

    Interface 3x Gigabit Ethernet Ports*6
    Button Reset
    Power Supply 12V DC / 24V Passive PoE (Passive PoE adapter included.)
    Power Consumption 11.5W
    Dimensions ( W x D x H ) 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
    Antenna Type Internal 2×2 Dual-polarized directional MIMO antennas
    5 GHz: 7.0 dBi
    Horizontal:70°, Vertical: 70°
    Weatherproof Enclosure IP65

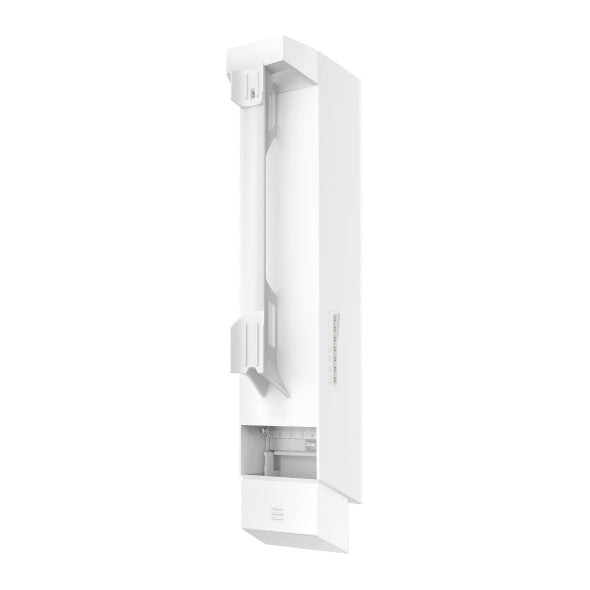

    Mounting Pole Mounting (Accessories included)
    WIRELESS FEATURES
    Coverage 1000m(3280ft)5
    Wireless Standards IEEE 802.11 a/b/g/n/ac
    Frequency 5 GHz
    Signal Rate 5 GHz: Up to 867 Mbps
    Wireless Functions • Mesh*4
    • MU-MIMO: 5G 2x2 MU-MIMO DL
    • Load Balance
    • Seamless Roaming(802.11r)
    • Beamforming
    • Airtime Fairness
    • Multiple SSIDs:8
    • Wireless Statistics
    • Wireless Schedule
    • Reboot Schedule
    • RADIUS Accounting
    • MAC Authentication
    • Static IP/Dynamic IP
    Wireless Security • VLAN
    • Access Control
    • Rogue AP Detection
    • Captive Portal Authentication*4
    • Maximum number of MAC Filter: 4,000
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
    Transmission Power • CE:
    <23dBm (5 GHz, band 1/2, EIRP);
    <30dBm (5 GHz band3, EIRP);

    • FCC:
    <22dBm (5 GHz band1/4)
    MANAGEMENT
    Omada App Yes
    Restore & Backup Yes
    Firmware update via Web Yes
    NTP Yes
    Centralized Management • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    • Omada Cloud-Based Controller
    Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1, v2c, v3
    SSH Yes
    Web-based Management Yes
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • EAP211-Bridge KIT
    • Passive PoE Adapter
    • Power Cord
    • Installation Guide
    • Mounting Kit
    Environment • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
    • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
    • Operating Humidity: 10%–90% non-condensing;
    • Storage Humidity: 5%–90% non-condensing
