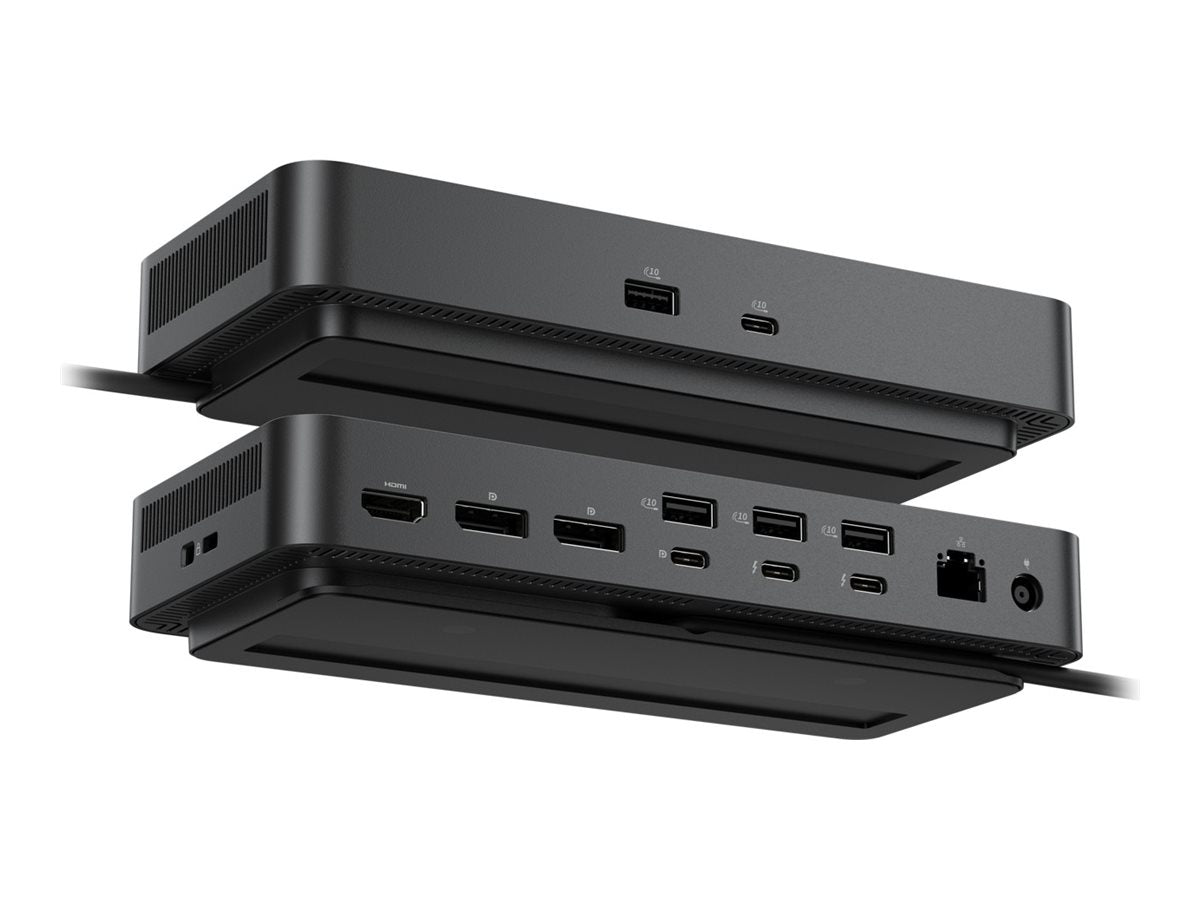

Dell Pro Thunderbolt 4 Docking Station - WD25TB4
Network & Communication Ethernet Technology 2.5 Gigabit Ethernet
Interfaces/Ports Host Interface Thunderbolt 4 Total Number of USB Ports 6 USB Type-A Yes Number of USB 3.2 Gen 2 Type-A Ports 4 Number of USB 3.2 Gen 2 Type-C Ports 1 Number of USB Type-A Ports 4 USB Type-C Yes USB Type-C Detail 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 Number of USB Type-C Ports 2 Network (RJ-45) Yes DisplayPort Yes Number of DisplayPorts 2 DisplayPort Version 1.4 HDMI Yes Number of HDMI Ports 1 HDMI Version 2.1 Thunderbolt Yes Thunderbolt Ports Quantity 2 Number of Thunderbolt 4 Ports 2 Interfaces
Software Host Software Host Software (Windows):
Power Description Maximum Power Supply Wattage 180 W Power Source Type Power Adapter
Physical Characteristics Height 205 mm Width 90 mm Depth 35.3 mm Weight (Approximate) 567 g
Miscellaneous Package Contents
Warranty Limited Warranty 3 Year
Dell Pro Thunderbolt 4 Docking Station - WD25TB4
Available:
In Stock
- Product SKU: DELL-WD25TB4
- Category: All Things Dell, Docking Stations, New Arrivals
$487.00
There are 5 units left in stock.
Only 5 Dell Pro Thunderbolt 4 Docking Station - WD25TB4 Default Title left in stock.
Tech Specs
Technical Information
Connectivity Technology
WiredDevice Supported
- Notebook
- Desktop PC
Cable Length
83 cmFeatures
- Power Delivery Pass-through
- LED Power Indicator
- Indicator Light
Management Features
- Intel AMT over Thunderbolt with select Intel vPro PCs
- MAC Address Pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-on-LAN
- WLAN to LAN Switch
- Kernel Direct Memory Access (DMA) Protection
- Dell Command Update (DCU)
- Port Disablement
- Host PC based firmware update
- Firmware update on disconnect
Number of Displays Supported
4Screen Mode Supported
- QHD @ 60Hz
- WQHD @ 60Hz
- 4K @ 60Hz
- 5K @ 60Hz
- 6K @ 60Hz
- 8K @ 60Hz
Supported Resolutions
- 3840 x 2160
- 5120 x 2160
- 2560 x 1440
- 3440 x 1440
- 7680 x 4320
- 6144 x 3456
Maximum Data Transfer Rate
1.25 GB/sSecurity Slot Type
- Kensington Security Slot
- Noble Wedge Security Slot
Power Delivery Details
- 4 x USB-A 3.2 Gen 2 (4.5W each)
- 1 x USB-C 3.2 Gen 2 (15W)
- 1 x USB-C Multi-function DisplayPort (7.5W)
- 2 x Thunderbolt 4 (15W each)
- All deliver power with or without PC
Power Delivery
- 130W (Dell Systems)
- 96W (non-Dell Systems)
Video Resolution Details
- QHD - 60 Hz (Quad Display)
- WQHD - 60 Hz (Triple Display)
- 4K - 60 Hz (Dual Display)
- 5K - 60 Hz (Single Display)
- 4K - 60 Hz (Quad Display)
- 4K - 60 Hz (Triple Display)
- 6K - 60 Hz (Dual Display)
- 8K - 60 Hz (Single Display)
Network & Communication
Ethernet Technology
2.5 Gigabit EthernetInterfaces/Ports
Host Interface
Thunderbolt 4Total Number of USB Ports
6USB Type-A
YesNumber of USB 3.2 Gen 2 Type-A Ports
4Number of USB 3.2 Gen 2 Type-C Ports
1Number of USB Type-A Ports
4USB Type-C
YesUSB Type-C Detail
1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4Number of USB Type-C Ports
2Network (RJ-45)
YesDisplayPort
YesNumber of DisplayPorts
2DisplayPort Version
1.4HDMI
YesNumber of HDMI Ports
1HDMI Version
2.1Thunderbolt
YesThunderbolt Ports Quantity
2Number of Thunderbolt 4 Ports
2Interfaces
- 2 x DP1.4
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
- 2 x Thunderbolt 4
Software
Host Software
Host Software (Windows):- Dell Firmware Utility
- Dell Display and Peripheral Manager
- Dell Command Update
Cloud Management (via host PC software)
Dell Device Management Console enables:
- Automatic firmware updates
- Maintain specific firmware version or downgrade
- Peripheral inventory and status
Operating System Supported
- Windows 10
- Windows 11
- Ubuntu 24.04
- macOS
- ChromeOS 137
- Red Hat Enterprise Linux 9.6
Power Description
Maximum Power Supply Wattage
180 WPower Source Type
Power AdapterPhysical Characteristics
Height
205 mmWidth
90 mmDepth
35.3 mmWeight (Approximate)
567 gMiscellaneous
Package Contents
- Pro Dock WD25TB4 Docking Station
- Power Adapter
- Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Kensington Security Slot
YesWarranty
Limited Warranty
3 YearTech Specs
Technical Information Connectivity Technology Wired Device Supported- Notebook
- Desktop PC
- Power Delivery Pass-through
- LED Power Indicator
- Indicator Light
- Intel AMT over Thunderbolt with select Intel vPro PCs
- MAC Address Pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-on-LAN
- WLAN to LAN Switch
- Kernel Direct Memory Access (DMA) Protection
- Dell Command Update (DCU)
- Port Disablement
- Host PC based firmware update
- Firmware update on disconnect
- QHD @ 60Hz
- WQHD @ 60Hz
- 4K @ 60Hz
- 5K @ 60Hz
- 6K @ 60Hz
- 8K @ 60Hz
- 3840 x 2160
- 5120 x 2160
- 2560 x 1440
- 3440 x 1440
- 7680 x 4320
- 6144 x 3456
- Kensington Security Slot
- Noble Wedge Security Slot
- 4 x USB-A 3.2 Gen 2 (4.5W each)
- 1 x USB-C 3.2 Gen 2 (15W)
- 1 x USB-C Multi-function DisplayPort (7.5W)
- 2 x Thunderbolt 4 (15W each)
- All deliver power with or without PC
- 130W (Dell Systems)
- 96W (non-Dell Systems)
- QHD - 60 Hz (Quad Display)
- WQHD - 60 Hz (Triple Display)
- 4K - 60 Hz (Dual Display)
- 5K - 60 Hz (Single Display)
- 4K - 60 Hz (Quad Display)
- 4K - 60 Hz (Triple Display)
- 6K - 60 Hz (Dual Display)
- 8K - 60 Hz (Single Display)
Network & Communication Ethernet Technology 2.5 Gigabit Ethernet
Interfaces/Ports Host Interface Thunderbolt 4 Total Number of USB Ports 6 USB Type-A Yes Number of USB 3.2 Gen 2 Type-A Ports 4 Number of USB 3.2 Gen 2 Type-C Ports 1 Number of USB Type-A Ports 4 USB Type-C Yes USB Type-C Detail 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 Number of USB Type-C Ports 2 Network (RJ-45) Yes DisplayPort Yes Number of DisplayPorts 2 DisplayPort Version 1.4 HDMI Yes Number of HDMI Ports 1 HDMI Version 2.1 Thunderbolt Yes Thunderbolt Ports Quantity 2 Number of Thunderbolt 4 Ports 2 Interfaces
- 2 x DP1.4
- 1 x HDMI 2.1
- 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
- 2 x Thunderbolt 4
Software Host Software Host Software (Windows):
- Dell Firmware Utility
- Dell Display and Peripheral Manager
- Dell Command Update
Cloud Management (via host PC software)
Dell Device Management Console enables:
- Automatic firmware updates
- Maintain specific firmware version or downgrade
- Peripheral inventory and status
Operating System Supported
- Windows 10
- Windows 11
- Ubuntu 24.04
- macOS
- ChromeOS 137
- Red Hat Enterprise Linux 9.6
Power Description Maximum Power Supply Wattage 180 W Power Source Type Power Adapter
Physical Characteristics Height 205 mm Width 90 mm Depth 35.3 mm Weight (Approximate) 567 g
Miscellaneous Package Contents
- Pro Dock WD25TB4 Docking Station
- Power Adapter
- Power Cord
- Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Warranty Limited Warranty 3 Year
